Filtration devices Ecofil

ECOFIL filter devices are assembled from first-class foreign and domestic parts and sub-assemblies, assembled and thoroughly tested in the production company. All parts of ECOFIL filter equipment are surface treated.

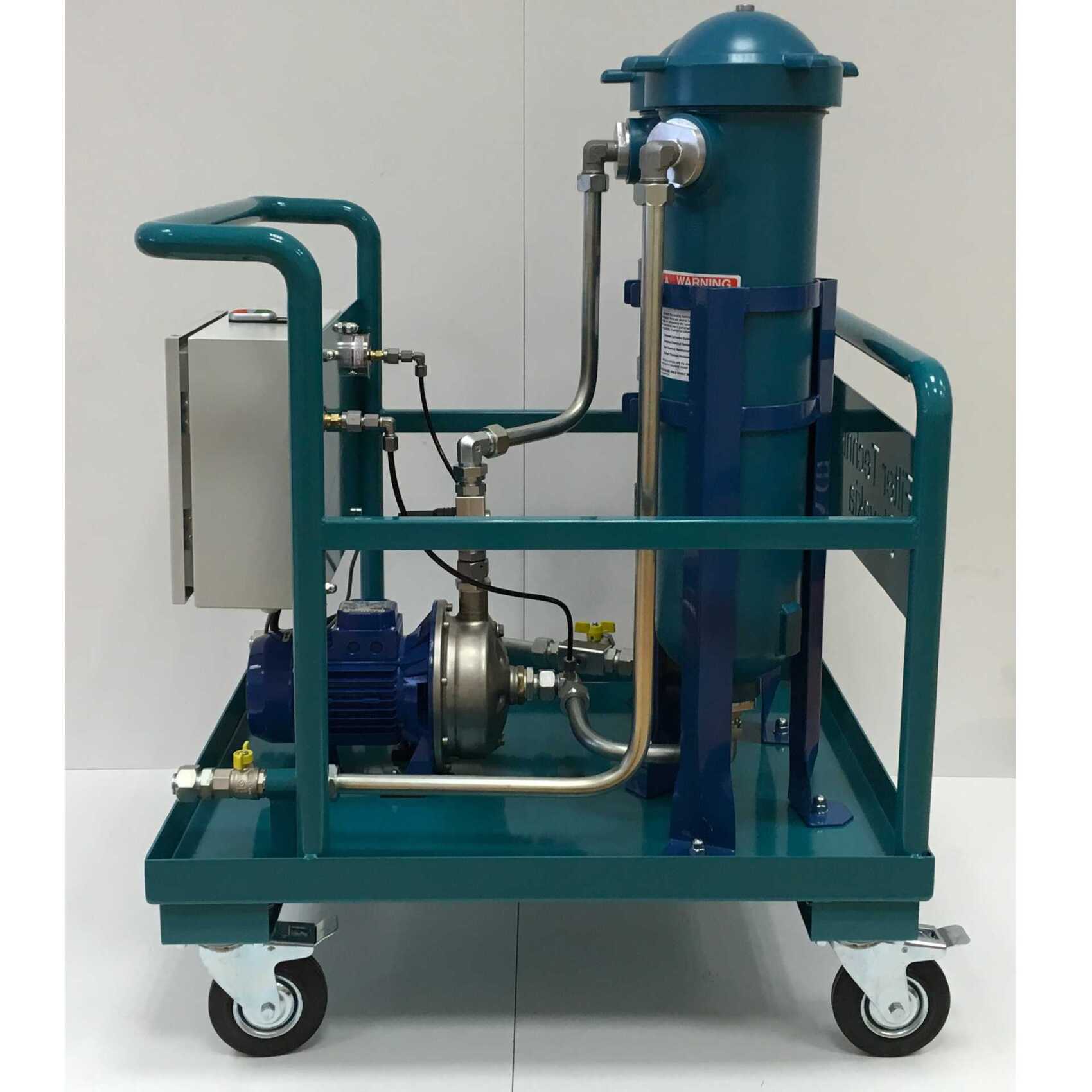

The frames of the devices are assembled from sheet metal parts that are laser cut and shaped by modern CNC equipment. The devices frames are assembled with screws. The oil sumps are waterproof to prevent accidental oil leakage. All parts of the frames, including the filter housings, are treated with oil-resistant powder paint. Hydraulic components are protected by a zinc coating. ECOFIL filter devices are fitted with aluminium filter housings and equipped with a pump with ele. motor, which enables oil filtration independently of the hydraulic and lubrication systems without using the operating pressure of the production equipment (by-pass, off-line). The filtration capacity of filtration devices increases with the number of installed filter housings. ECOFIL filter devices are available in a stable or mobile version.
Filtration equipment can be equipped with NEURON filtration monitoring system (link to the Monitoring page), which monitors the basic tribological parameters of filtration: water content at the oil inlet and outlet, content of mechanical particles (NAS1638, ISO4406), temperatures, soft sludge content (sediment, resin, varnish), the breakdown voltage of the transformer, the colour of the oil and the humidity of the cellulose of the transformer winding. Pressure and vacuum values are monitored using mechanical pressure gauges. Filtration devices are protected against high pressure by means of mechanical safety valves.
ECOFIL filtration devices are designed for by-pass or off-line filtration of all types of oils and industrial liquids on production equipment without interrupting the main technological process.
Filtration efficiency depends on the type of filter insert installed, but is usually 99.998% effective, filtration capacity ≥1 µm. The ability to capture solid particles, water and soft sludge (resins, sediments, varnishes) in one flow significantly increases the service life of the filtered oil and at the same time of the full-flow installed filters, hydraulic and mechanical elements of the production equipment.

Filter housings
Filter housings

Filtration devices - SN series

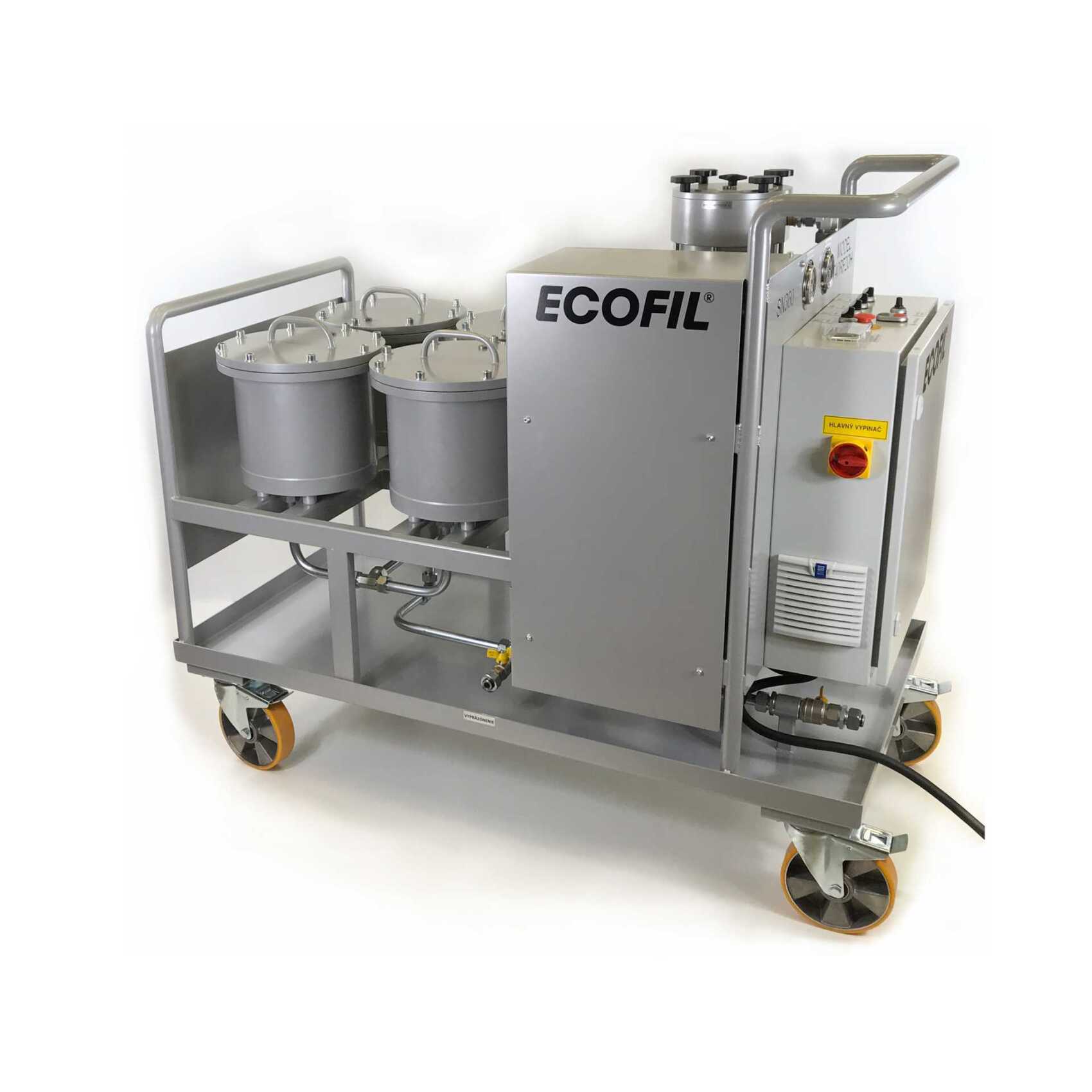

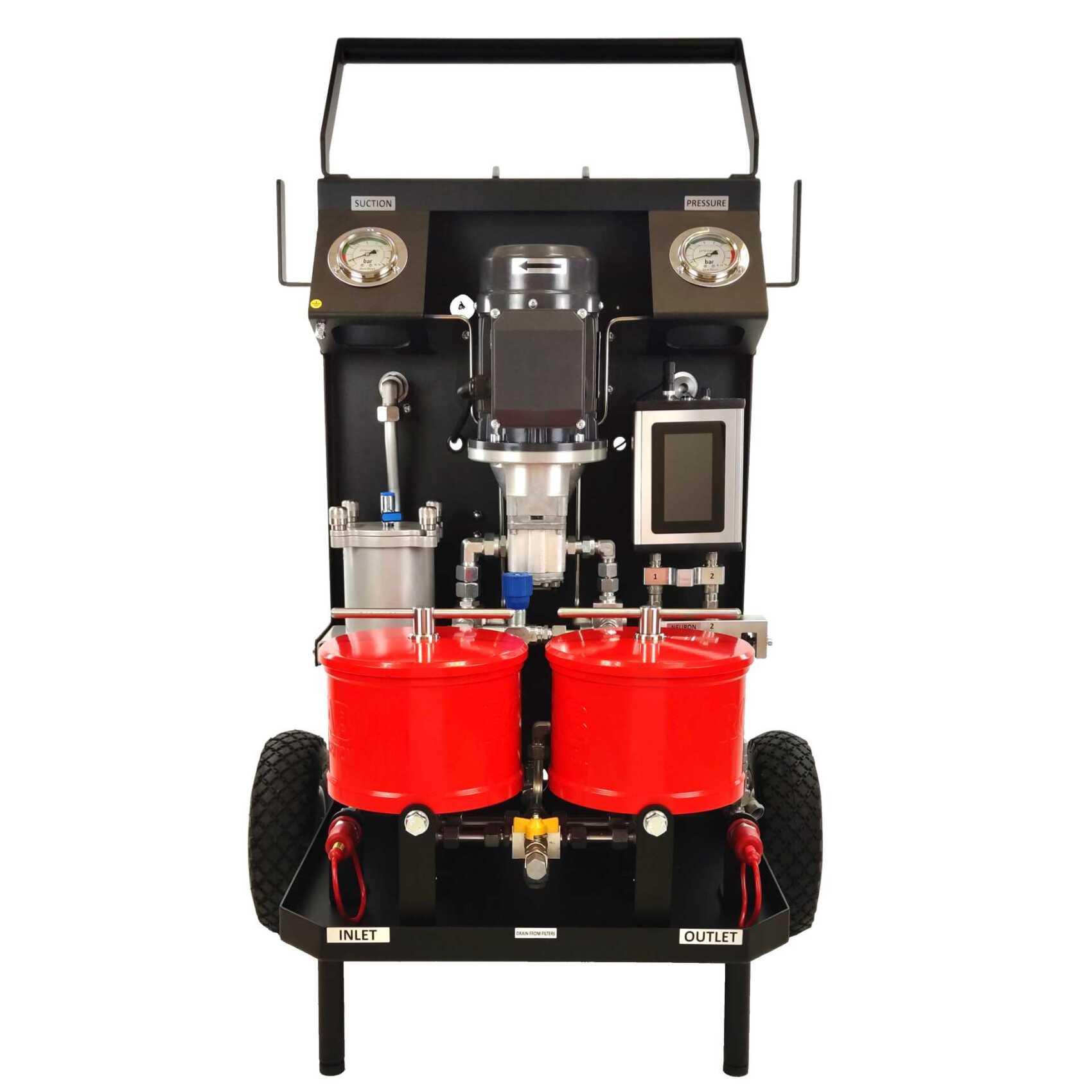

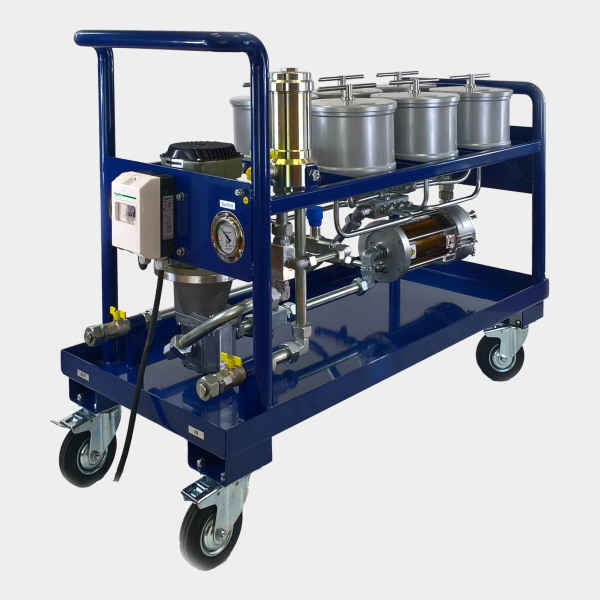

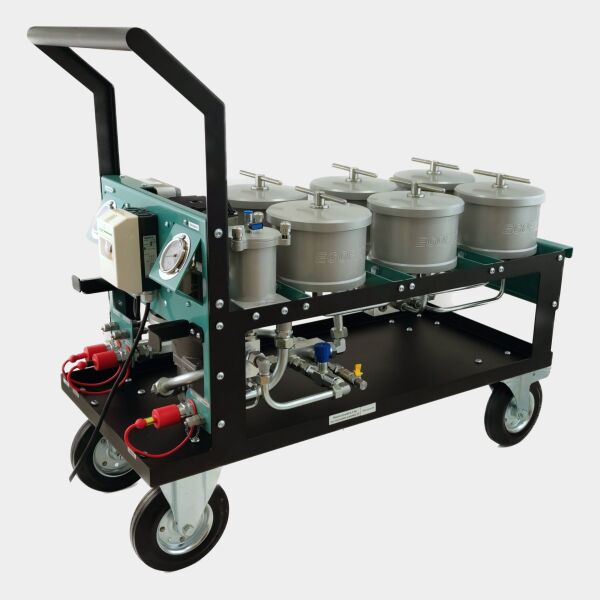

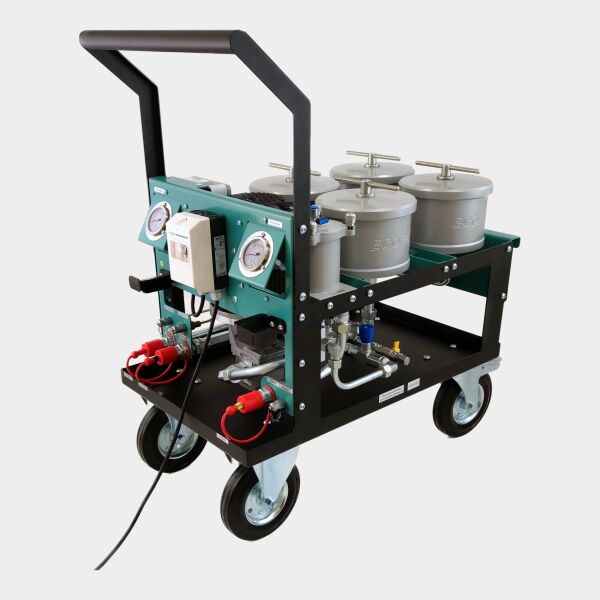

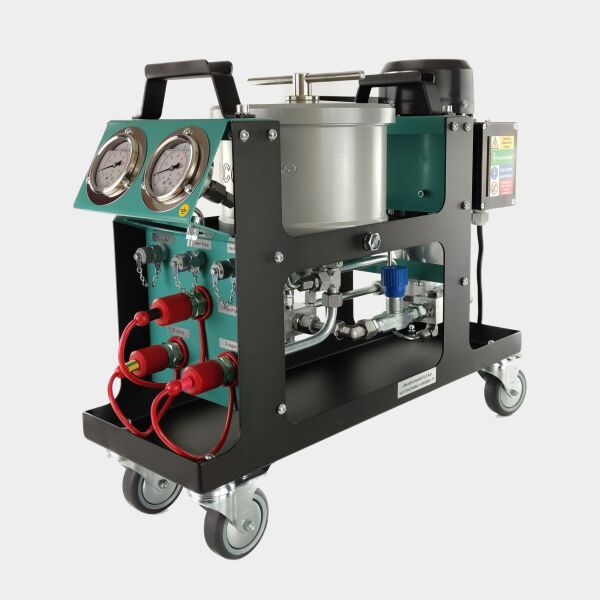

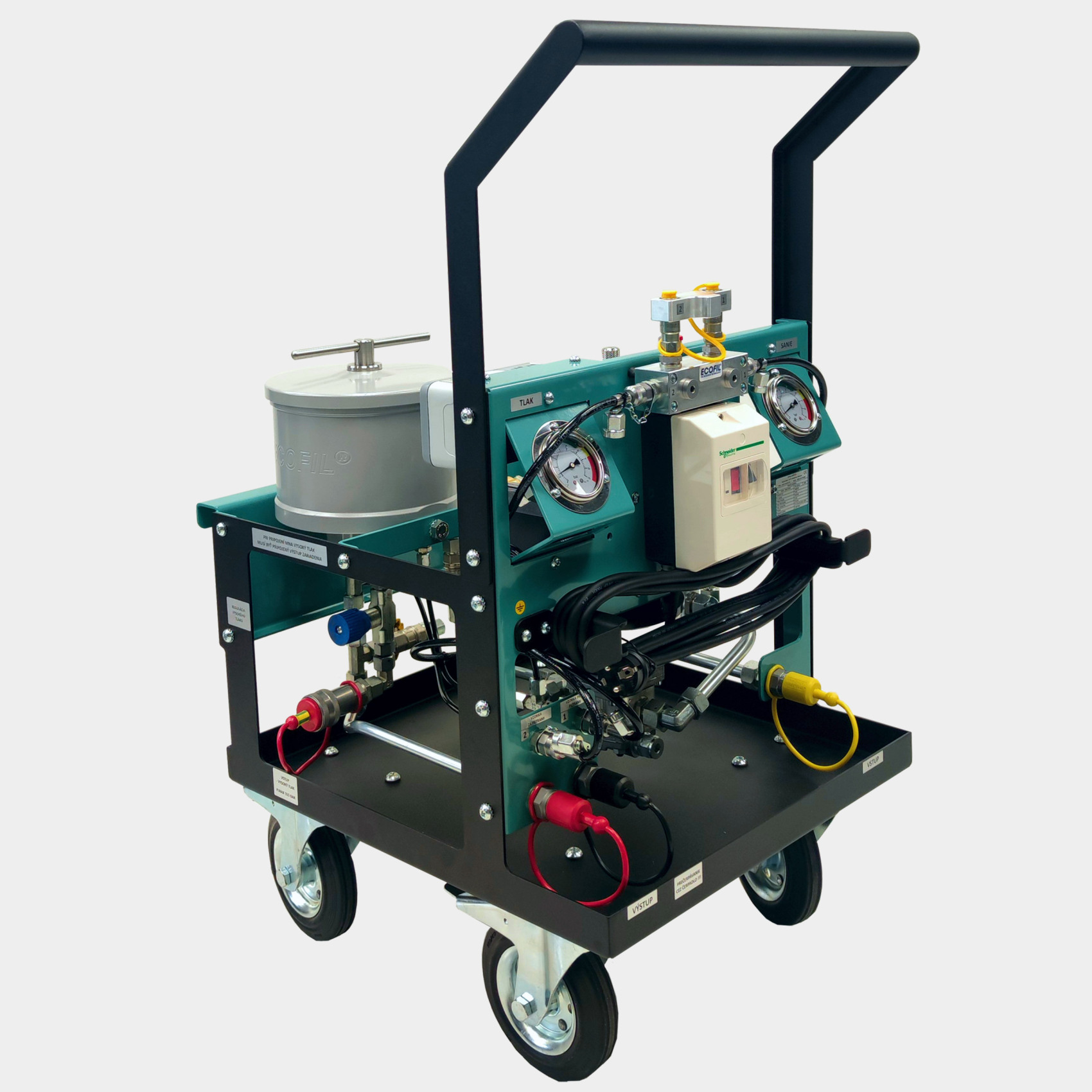

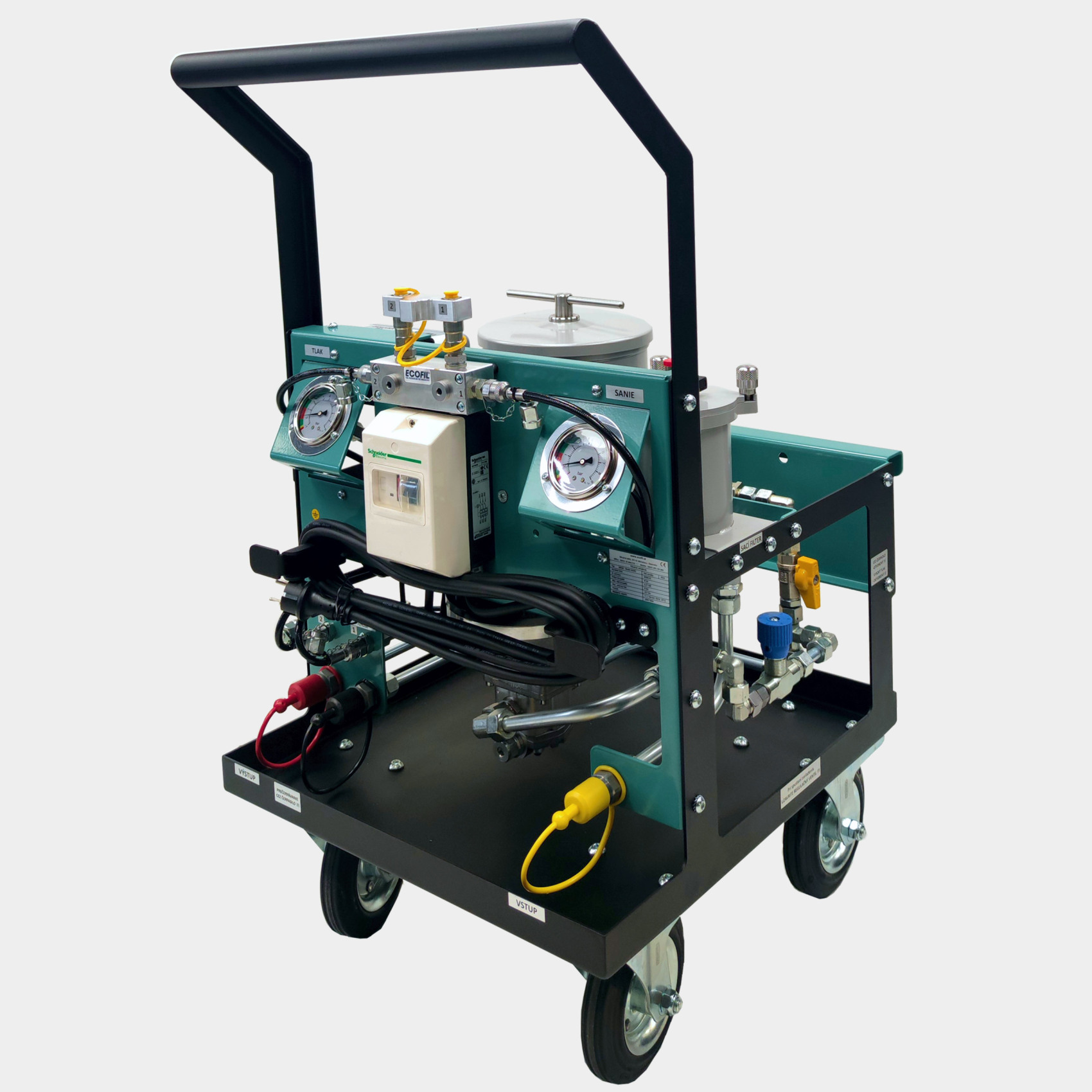

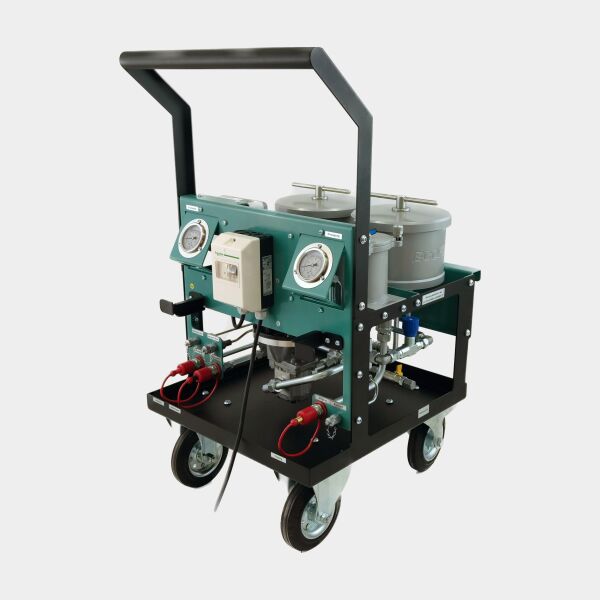

Filtration devices ECOFIL SN-series consist of a number of aluminum filter housings T35, equipped with pump and motor. This allows the oil cleaning independently of hydraulic, automotive or lubricating systems without using the operating pressure.

SN – series has a standard built-in steel frame in a portable or mobile version. Filtration capacity of filter system with SN - series local increases with the number of installed filter housings.

Filtration devices - SN series and specification

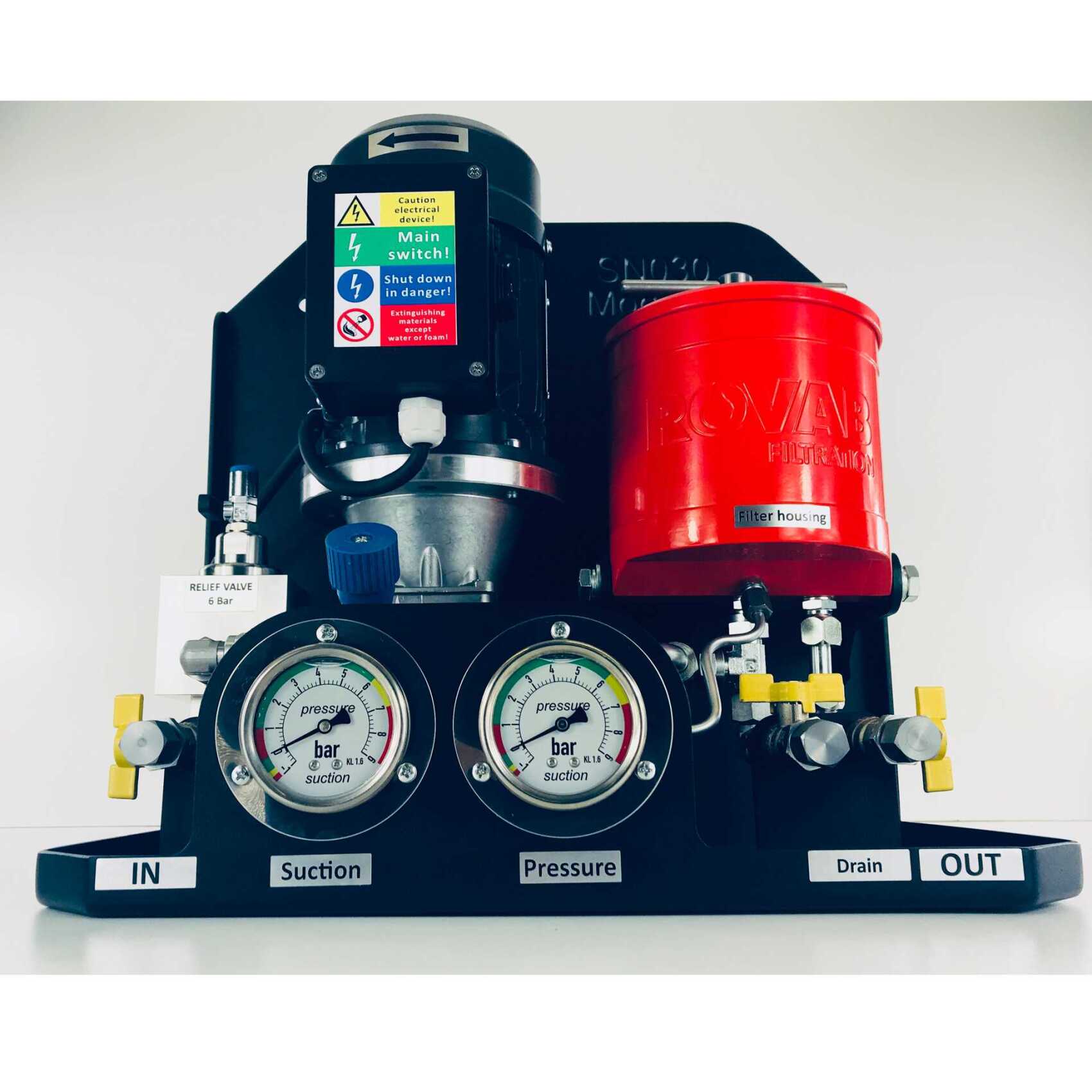

SN030 model 35

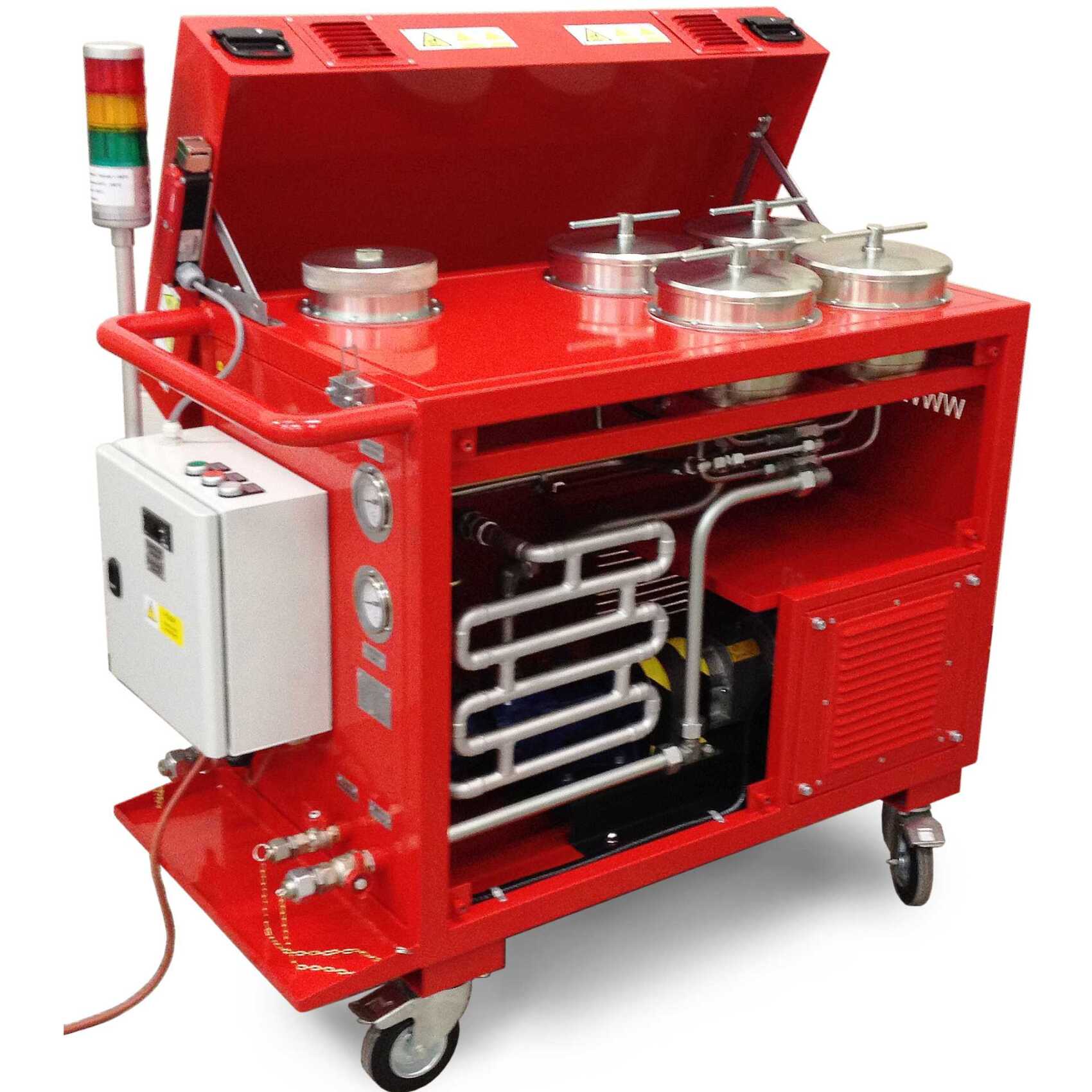

SN030 Transformer Oil


SN XXL XL M 24V ECO Motor


SN030,060 24VDC

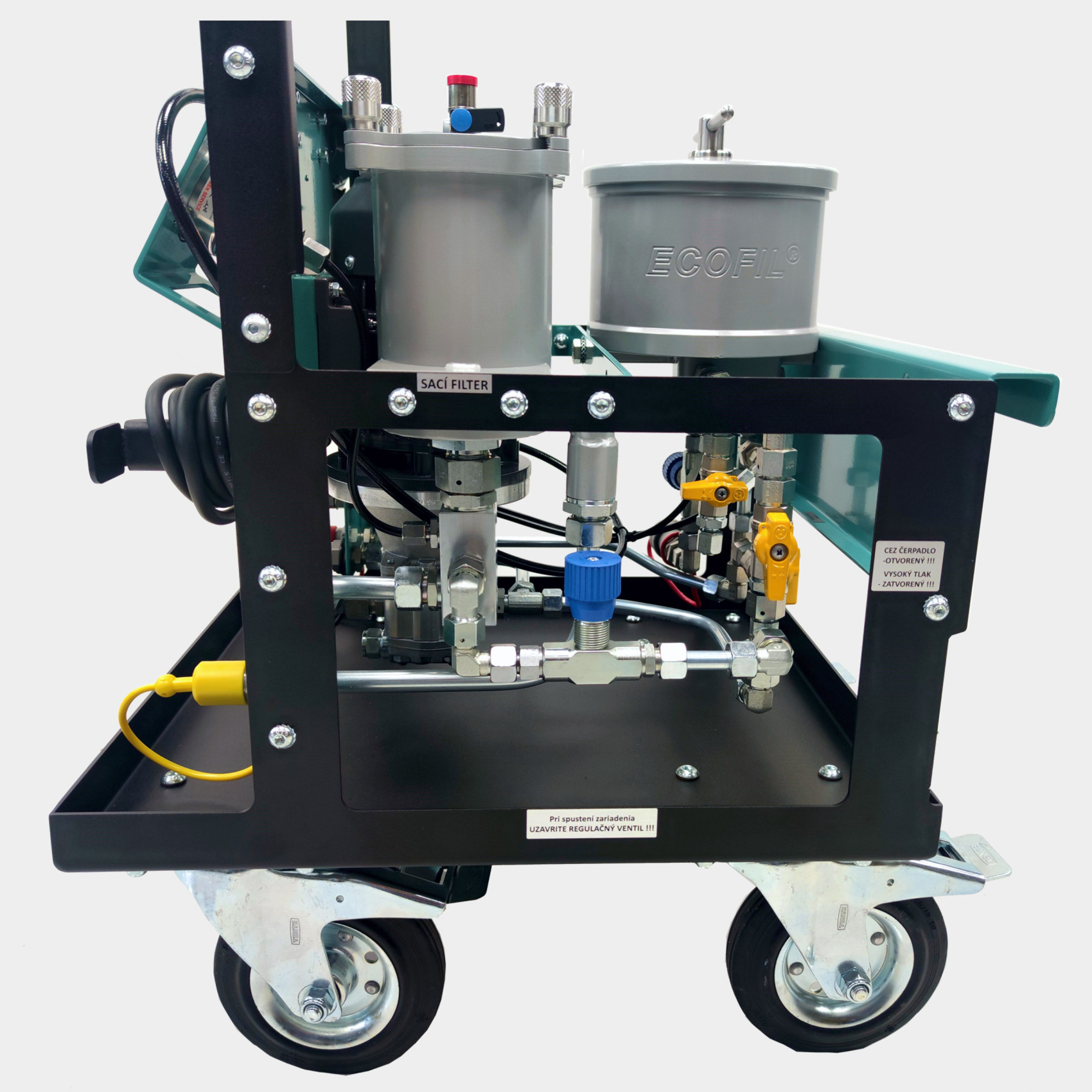

SN060 model 35 - voz├şk


SN060 model 35 - jazve─Ź├şk


SN120 model 35


SN180 model 35


SN240 model 35


SN300 model 35

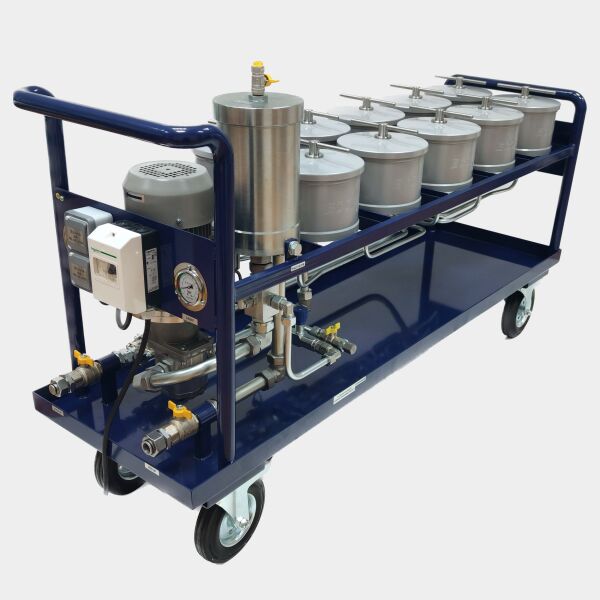

SN360 model 35

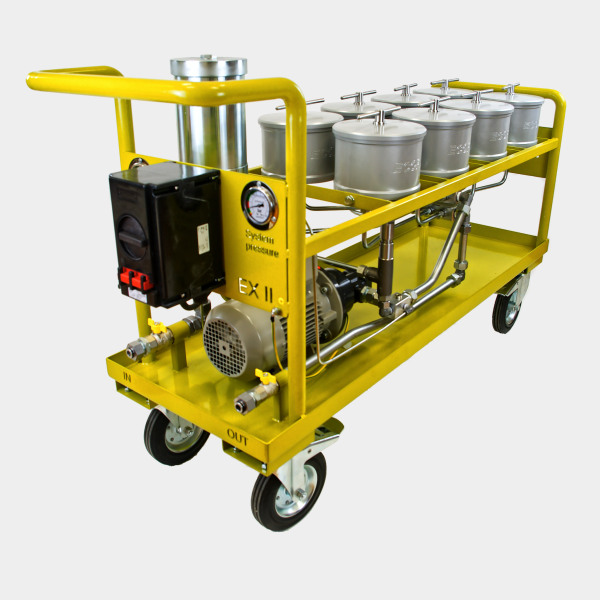

SN ATEX


SN Super ├║sporn├Ż ECO Motor 24V


SN Magnet Filtration

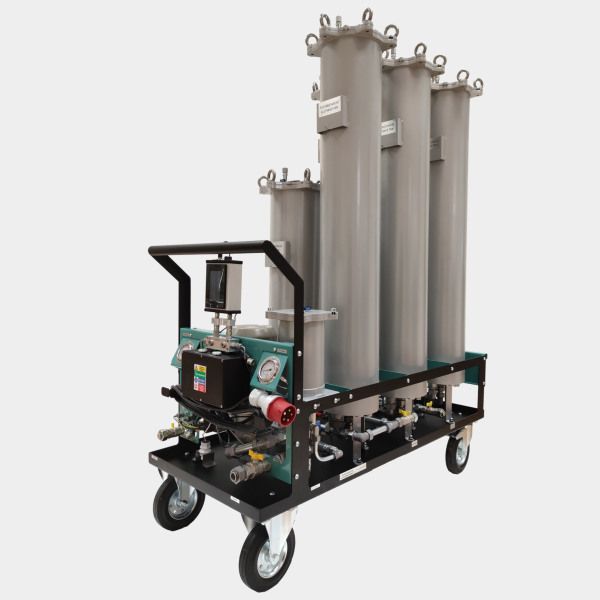

SN ECOTOWER Regeneration

Filter housings

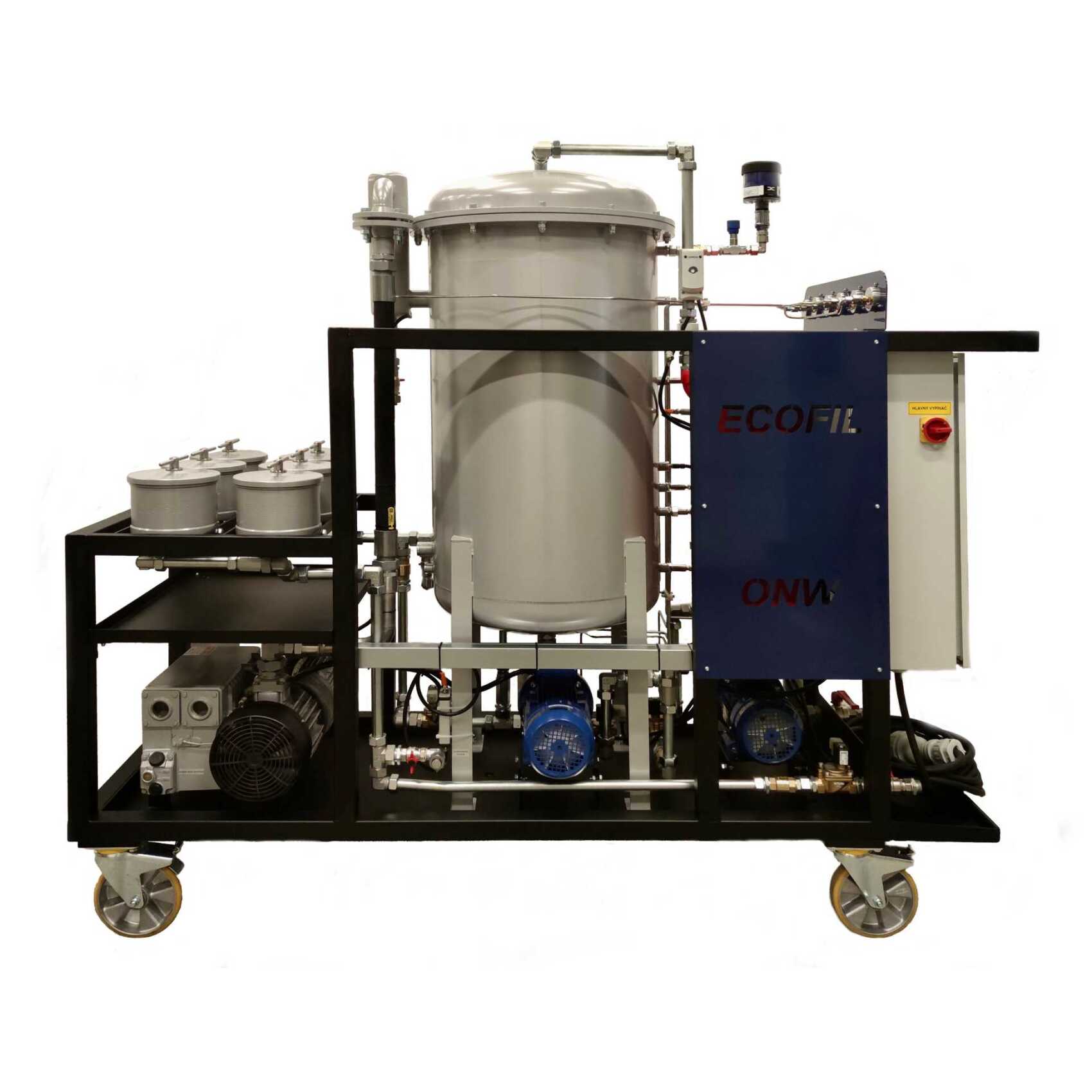

Filtration and regeneration devices ONW series

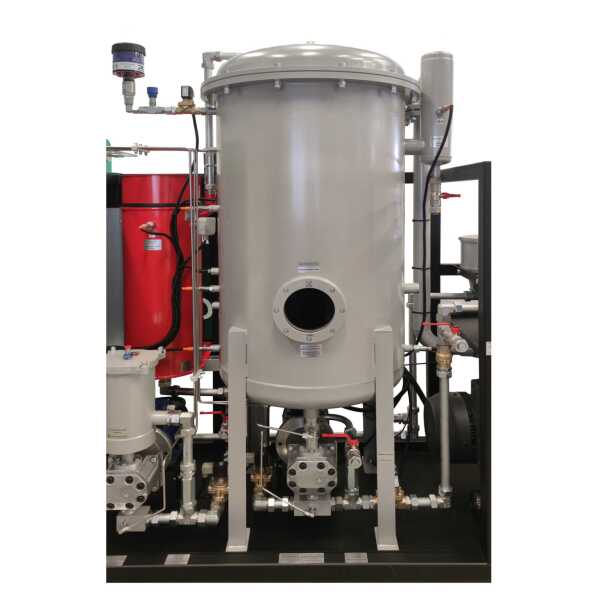

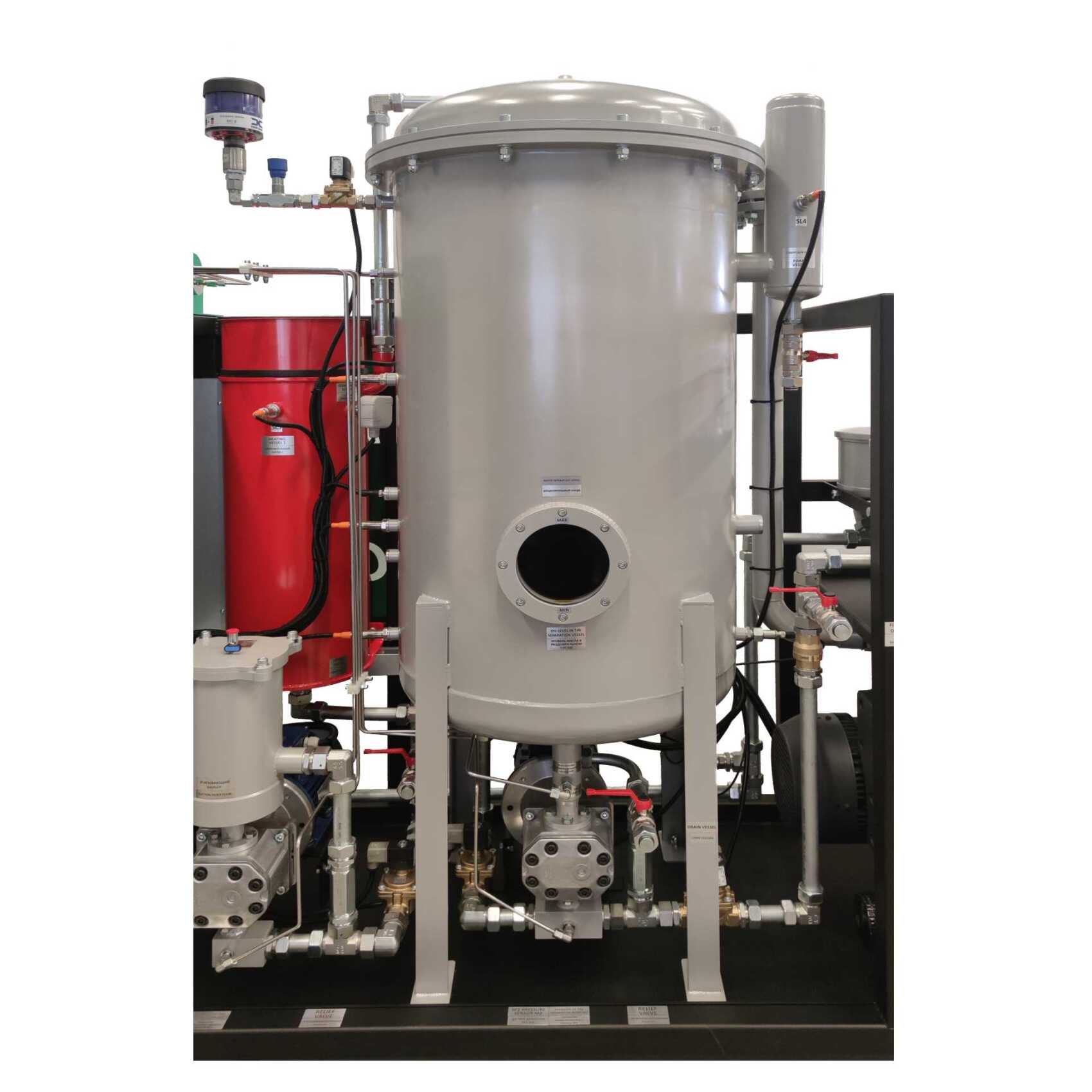

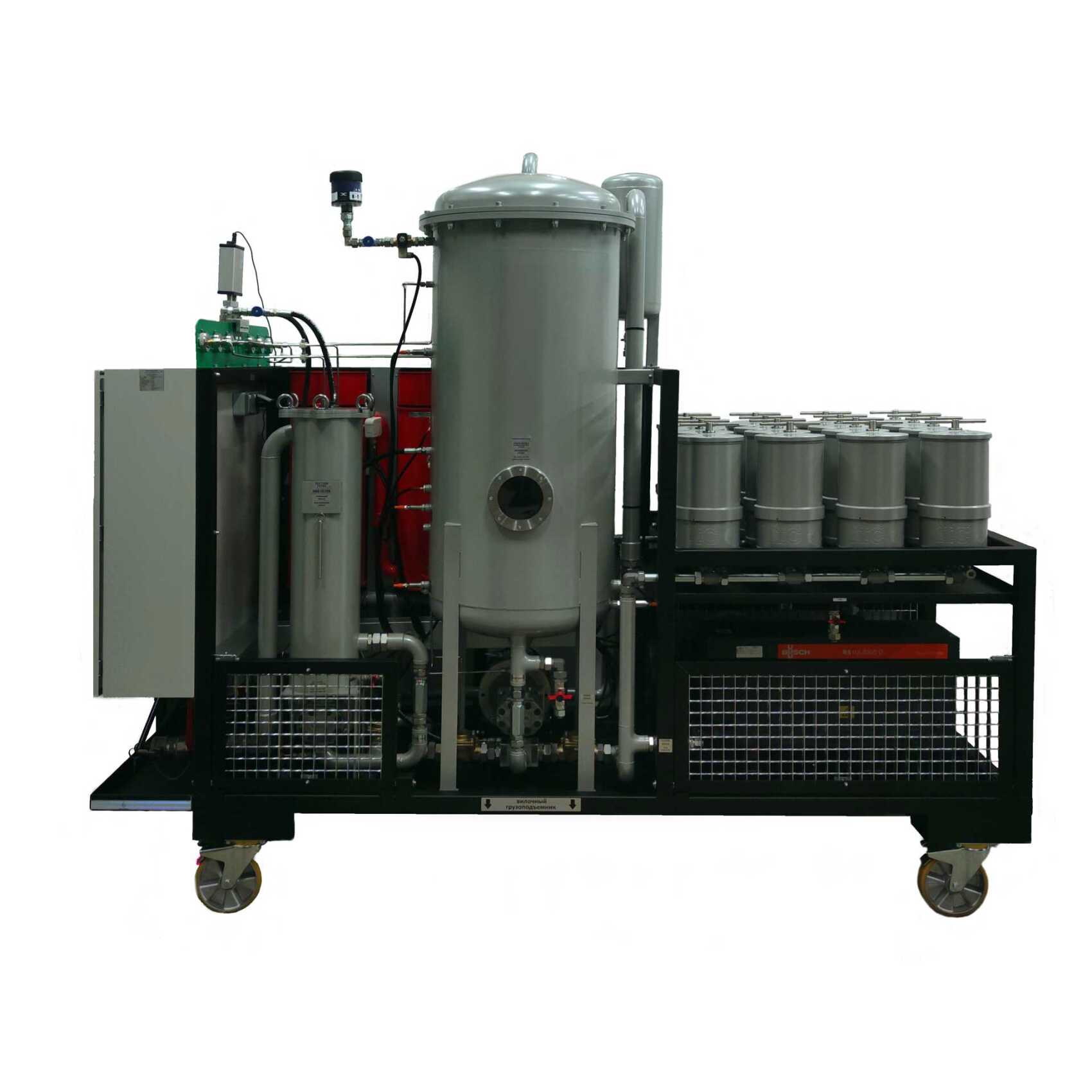

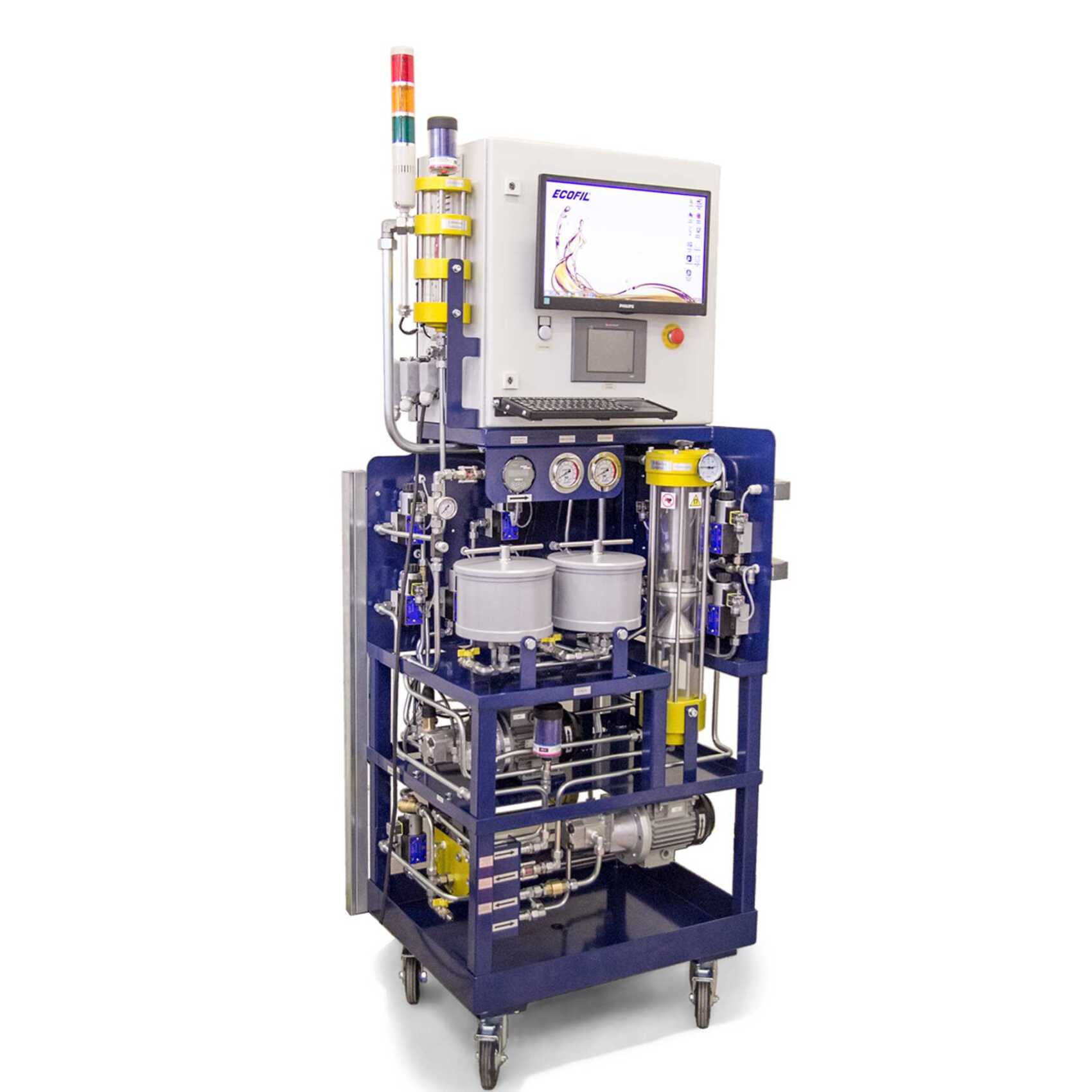

ECOFIL® ONW series regeneration and filtration devices are designed for vacuum removal of free and bound water down to a level of ≤ 2 pmm. At the same time, solid impurities, soft sludge and sediments are removed during the technological process. In the vacuum chamber, all gases dissolved in the oil are removed by degassing. The ONW series is also designed for oil regeneration. Oil regeneration is carried out using only the TAN regeneration cartridge without the need for difficult modification of the filter housings. The ONW series is fully computer controlled with on-line supervision. NEURON® oms filtration and regeneration monitoring is applied to the ONW series. The ONW series is designed for the most demanding operating conditions.

Filtration and regeneration devices ONW series

ONW Degassing Small Volume Oil

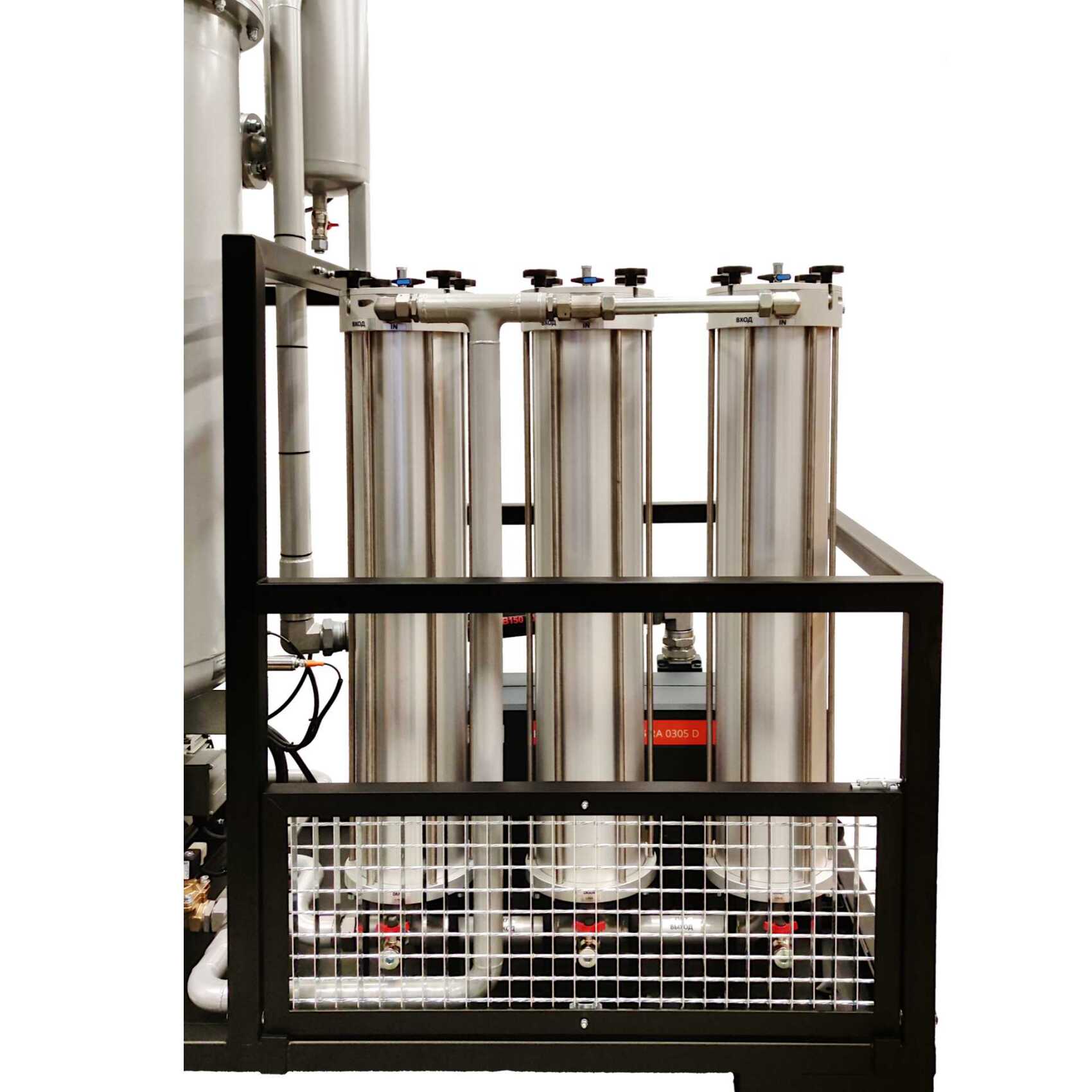

ONW Regeneration Housings



ONW Reneration TAN Elements



ONW Vacuum Separator



ONW Vacuum Separator Front



ONW Vacuum chamber



Special devices

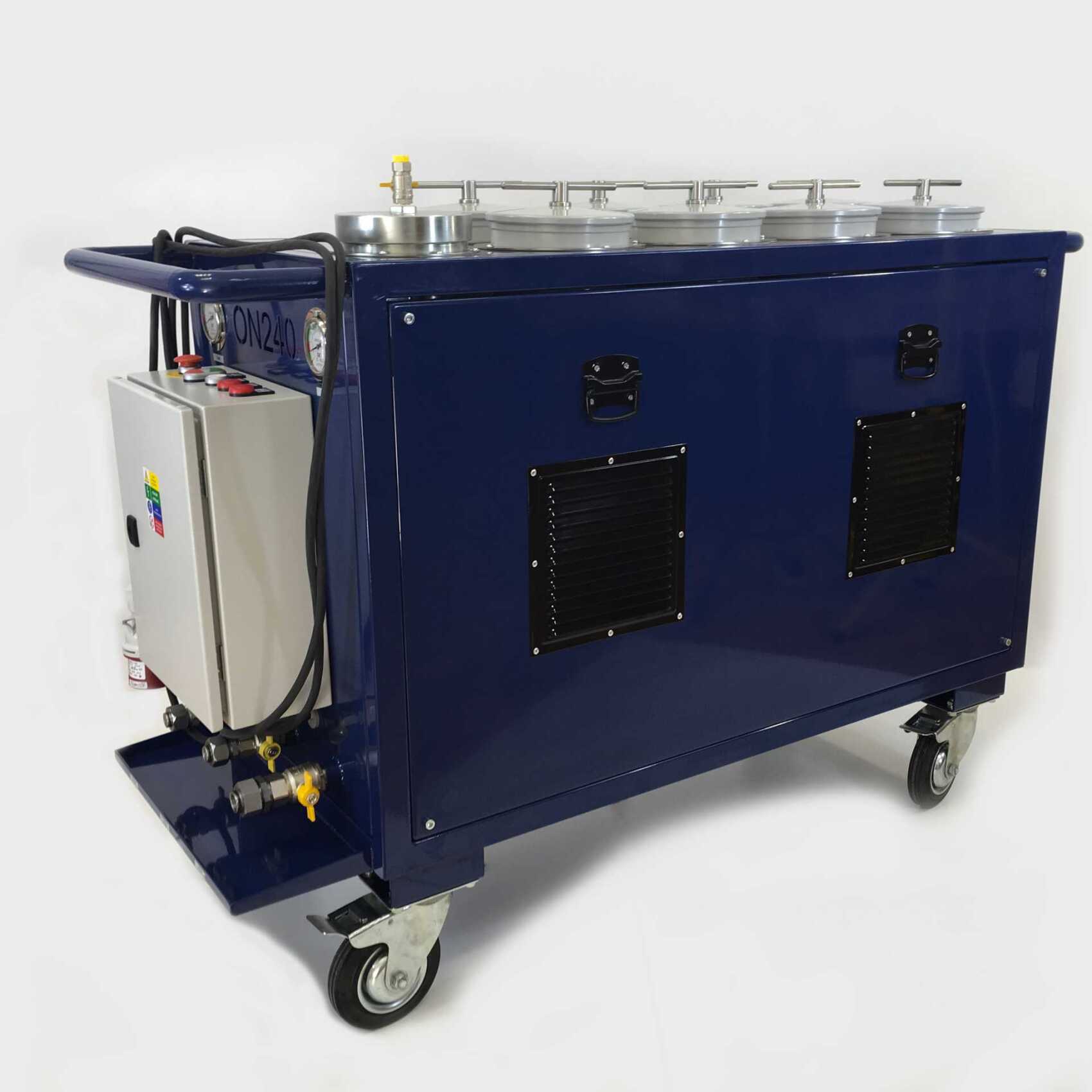

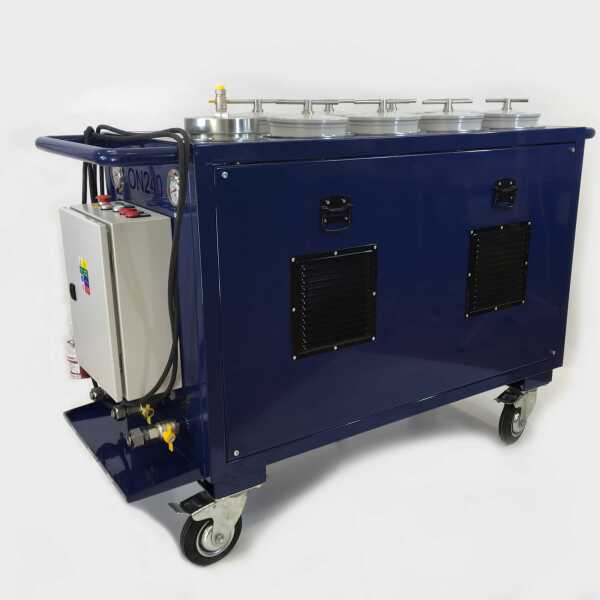

ON240 model35



SN Candle Filter



SN RUDLA ECOTOWER



SN RUDLA SpinON

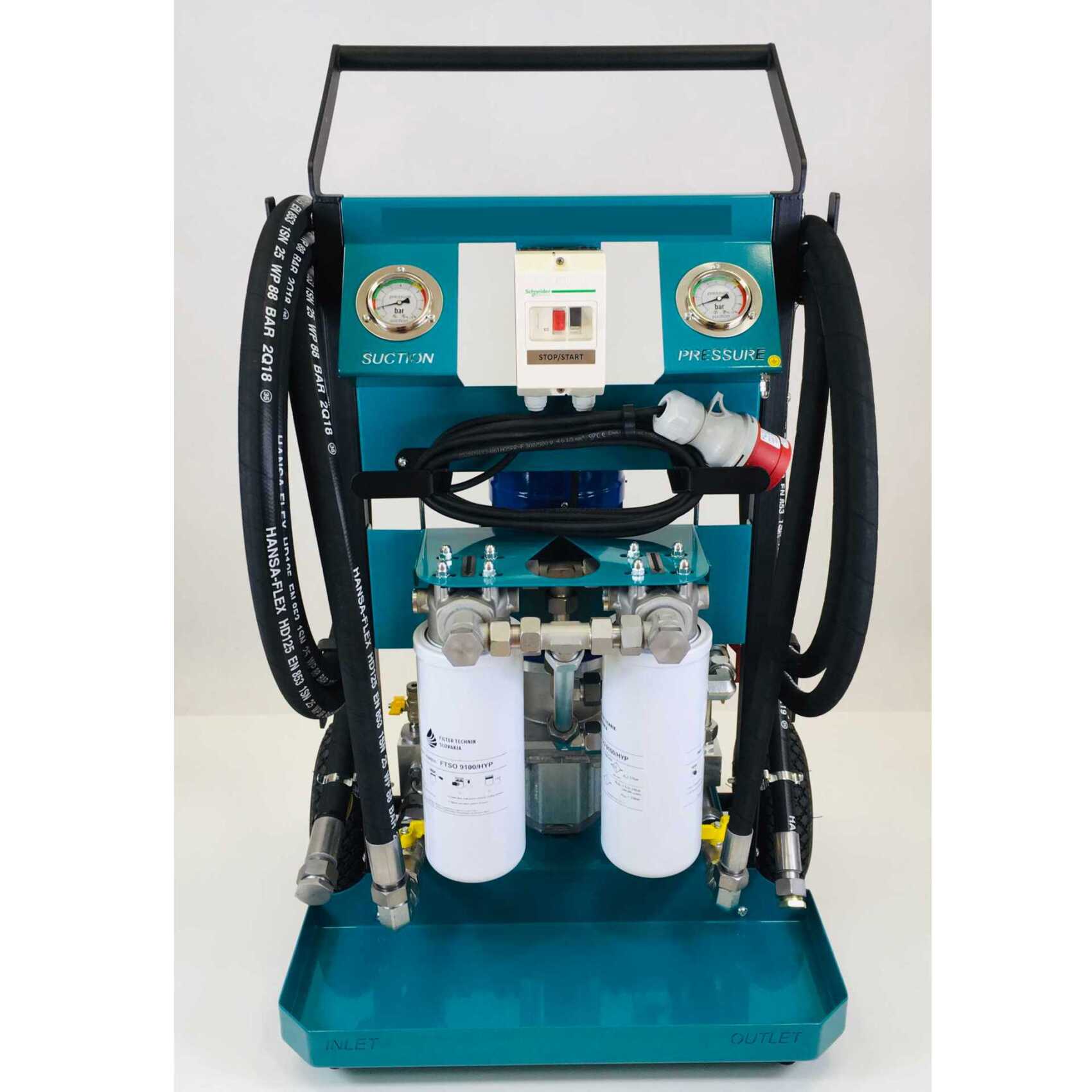

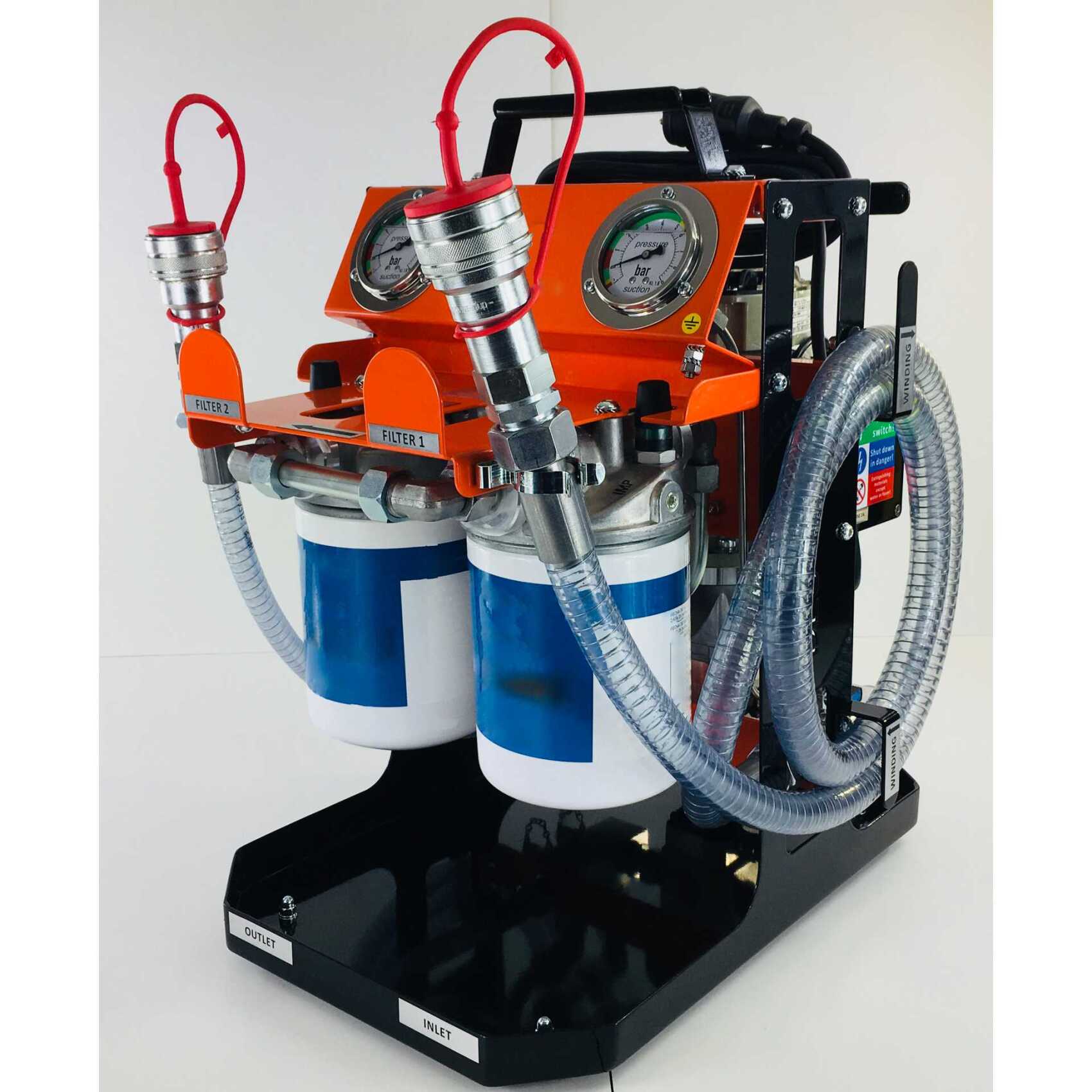

SN SpinON



SN XL SpinON

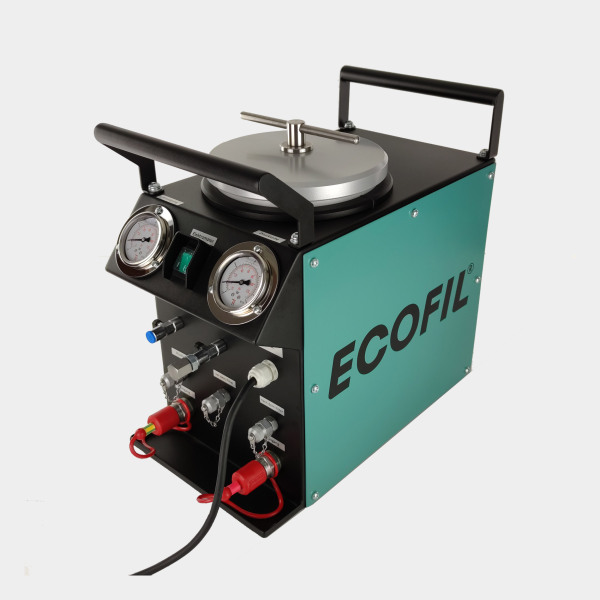

SN020 Wall Mounting



SN030 Spinea



SN060 CCTPA

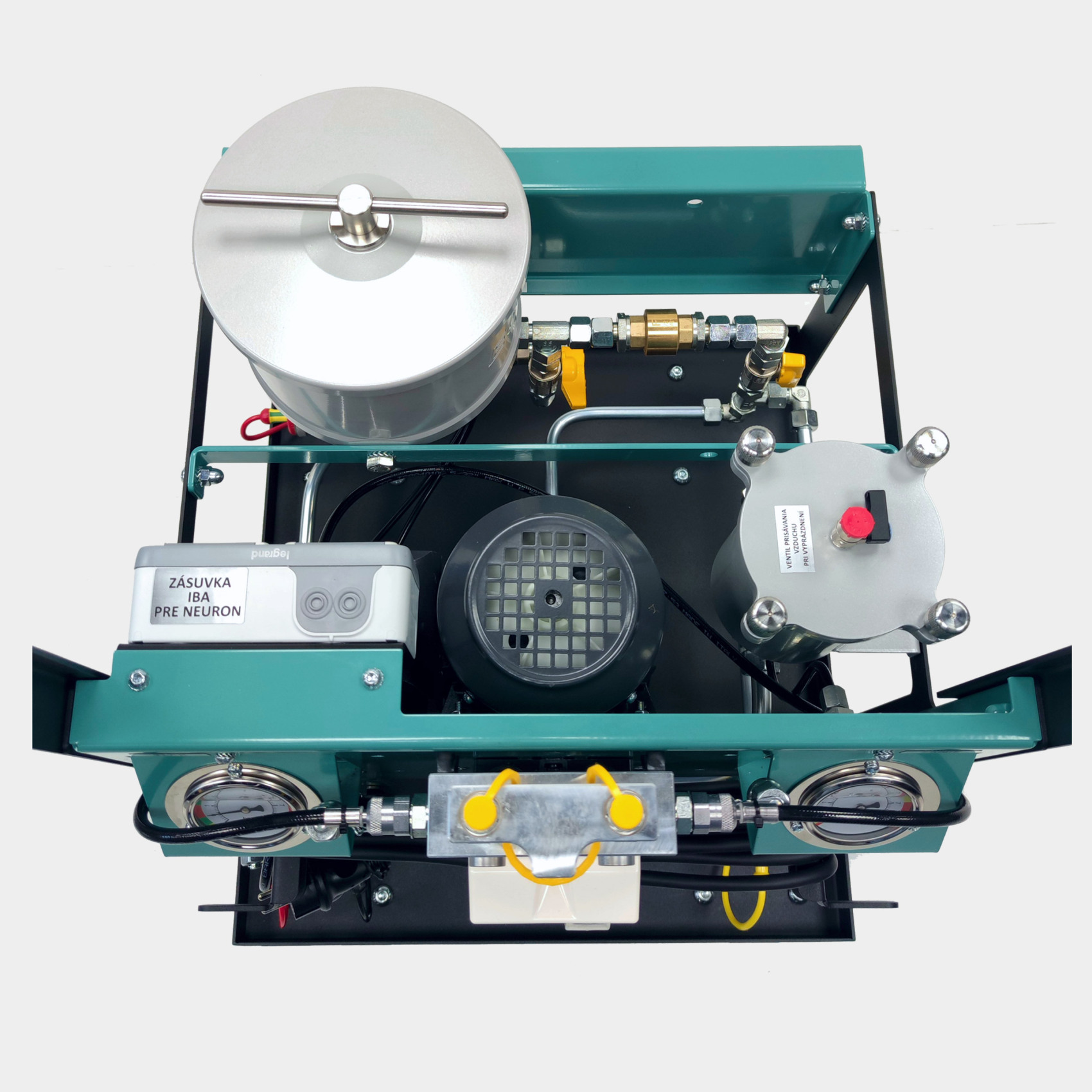

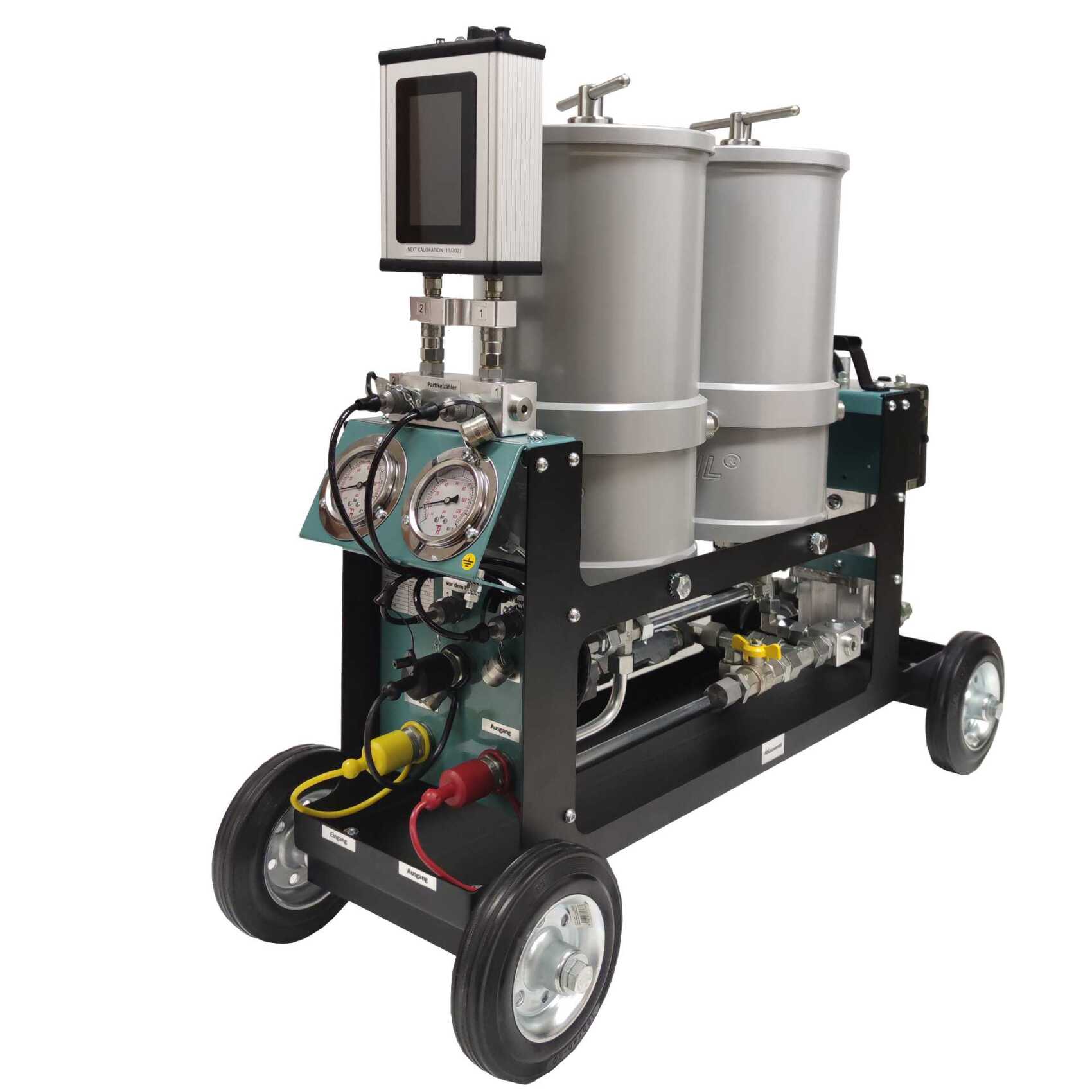

SN060 RUDLA with NEURON 1



SN060 Trafo Regener Reinhausen



SN070 CC Spinea



SN120 model 2xECOMIL RFS4 AP-28

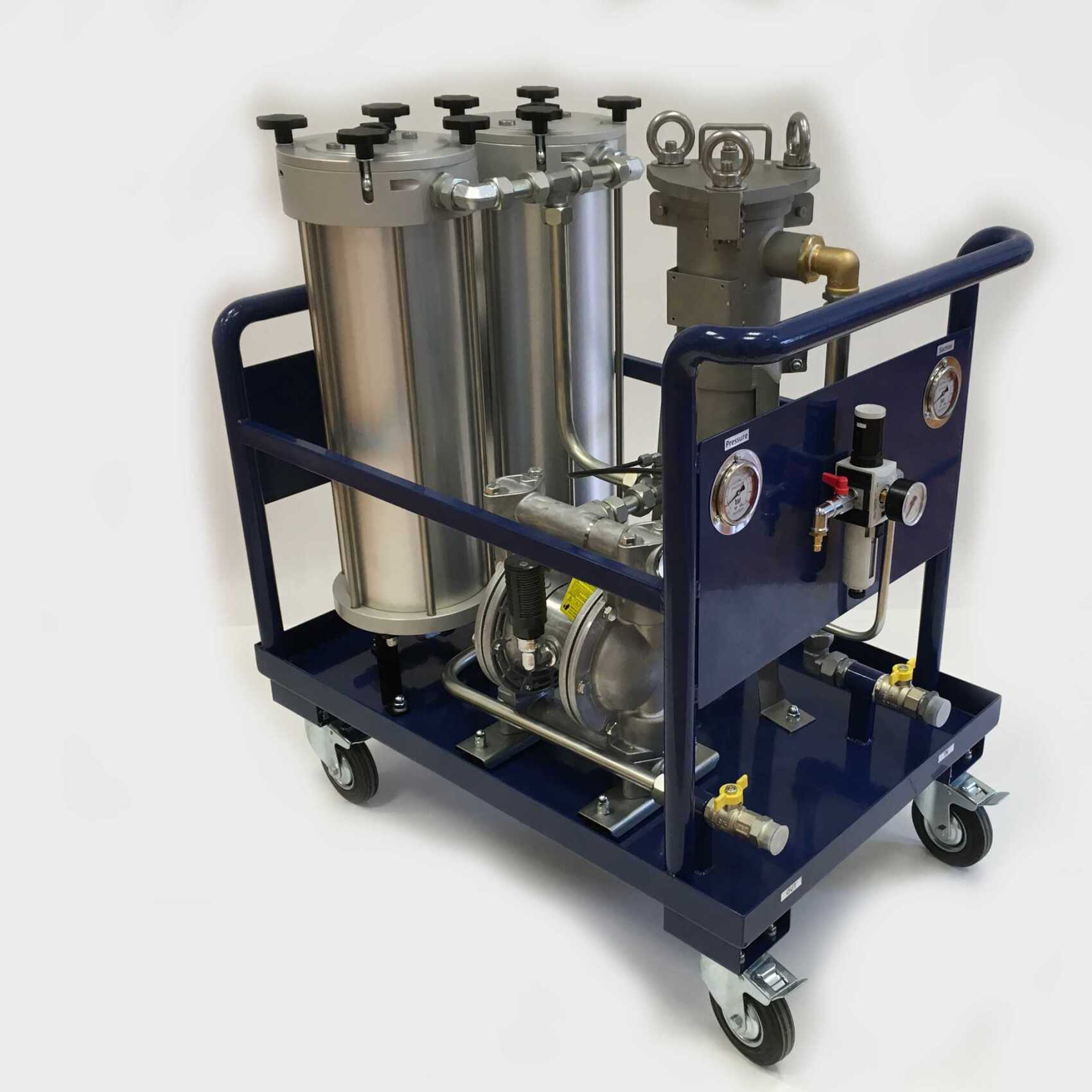

SN120 with Air pump

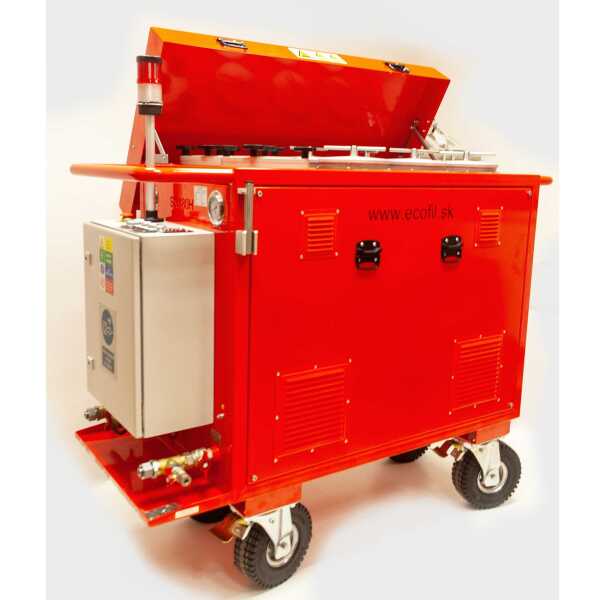

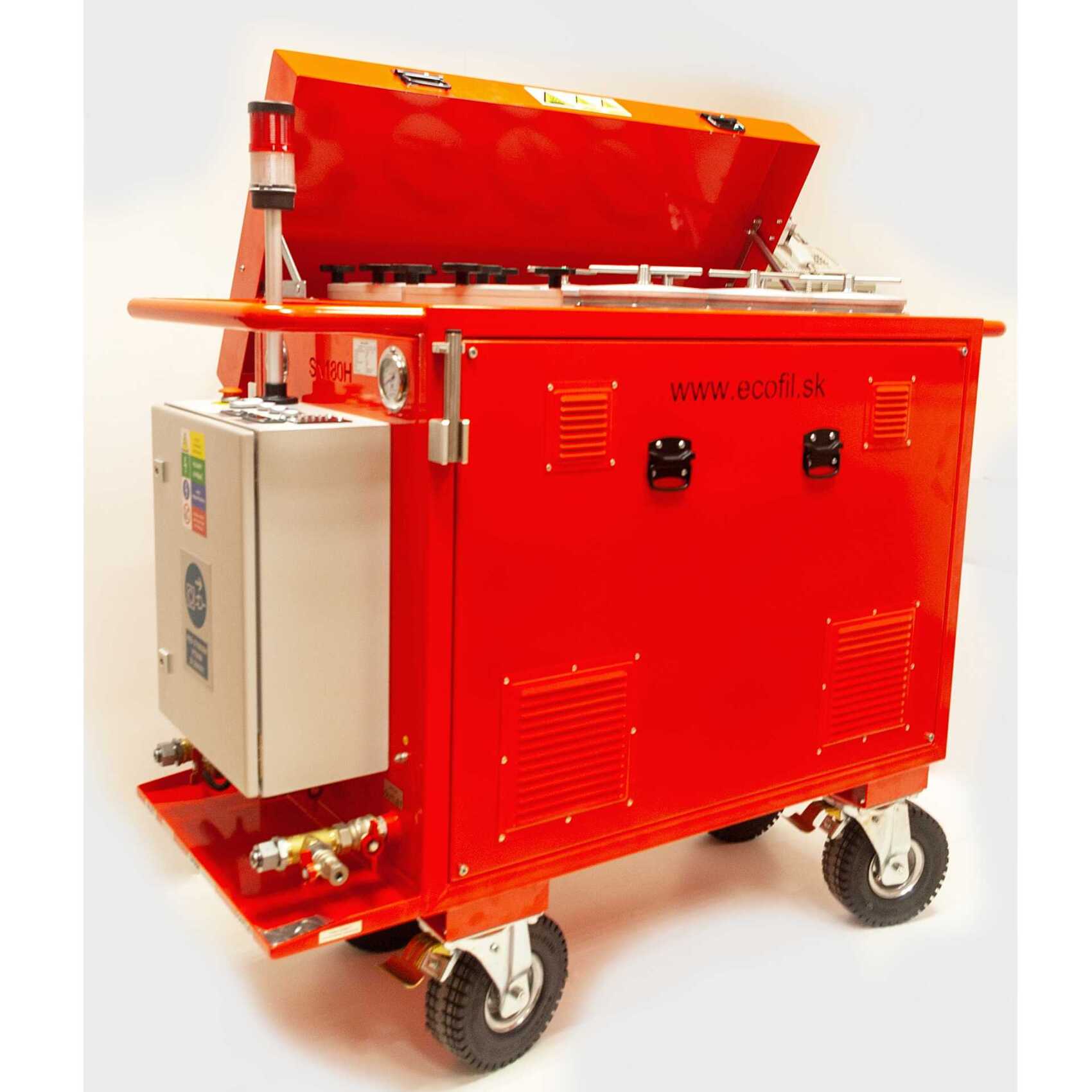

SN120H Quenching oil



SN180 ECO Motor Regeneration



SN180H Heating oil 180oC



SN360 Heater



SN360 PUMP PZ36



SN360 T40 RF

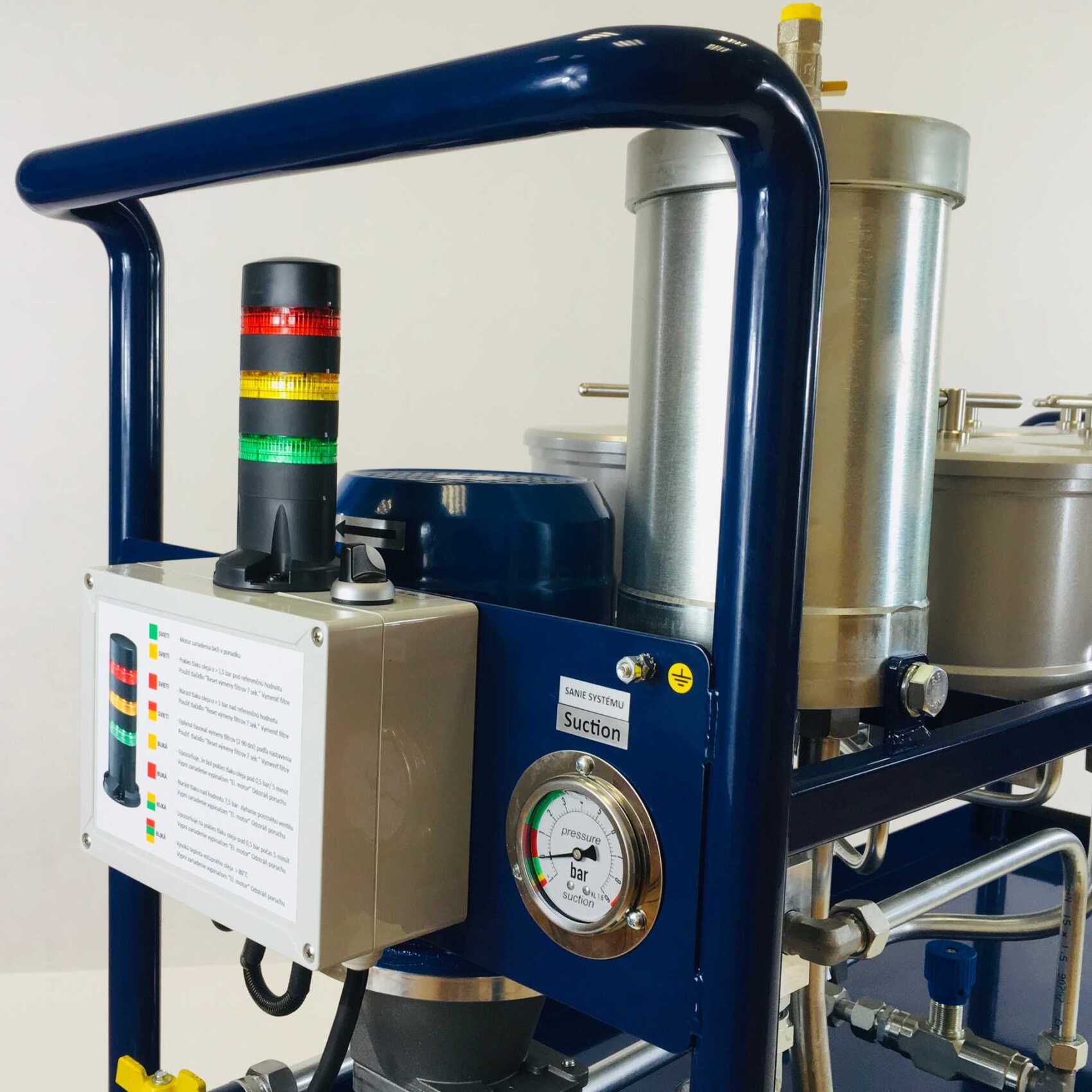

Signalization
